Distillation is a crucial process in industries ranging from petrochemicals to pharmaceuticals. It involves separating components based on differences in their boiling points.

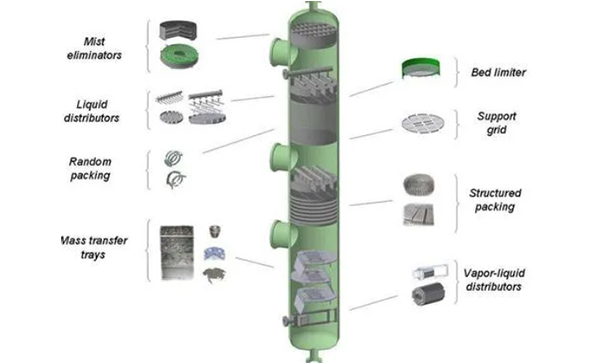

Central to this process is the distillation column, a vertical cylindrical vessel where the separation occurs. Within this column are various components known as internals, which are essential for enhancing the efficiency and effectiveness of the distillation process.
The distillation column internals are designed to transfer heat energy or enhance material transfer.
| Column Internals | Function | Types | Benefits |
| Trays and Plates | Trays and plates provide surfaces for the vapor and liquid phases to come into contact, facilitating mass transfer. | ▪ Sieve Trays: Perforated plates that allow vapor to pass through the liquid. They are simple and cost-effective. ▪ Valve Trays: Similar to sieve trays but with valves that open and close based on vapor flow, offering better control and efficiency. ▪ Bubble Cap Trays: Have caps that trap vapor and force it to bubble through the liquid, enhancing contact time. | Enhanced mass transfer between phases. Flexibility in operation. |
| Packing | Packing materials provide a large surface area for vapor and liquid to interact, increasing the efficiency of the distillation process. | ▪ Random Packing: Irregularly shaped materials such as Raschig rings or Pall rings, are randomly dumped into the column. ▪ Structured Packing: Arranged in a specific, ordered pattern, offering lower pressure drop and higher efficiency. | Increased surface area for mass transfer. Lower pressure drop compared to trays. |
| Downcomers | Downcomers are channels that guide the liquid from one tray to the next lower tray. | ▪ Segmental Downcomers: Arc-shaped channels that occupy part of the column's cross-section. ▪ Chimney Downcomers: Vertical pipes that collect liquid from the tray and direct it downwards. | Efficient liquid flow management. Prevention of liquid entrainment in the vapor phase. |
| Distributors and Redistributors | Distributors ensure uniform distribution of liquid over the packing or trays, while redistributors correct any maldistribution that may occur as the liquid flows down the column. | ▪ Liquid Distributors: Designed to spread the liquid evenly across the column's cross-section. ▪ Liquid Redistributors: Installed at intervals to correct distribution and ensure consistent performance. | Improved column efficiency. Prevention of channeling and dry spots. |
| Support Plates and Grids | These components provide mechanical support for the packing materials. | ▪ Support Plates: Perforated plates that hold the packing in place while allowing vapor and liquid to pass through. ▪ Support Grids: Grate-like structures that offer robust support for heavier packing materials. | Structural stability. Consistent performance of the packing. |
| Demister Pads | Demister pads, or mist eliminators, capture entrained liquid droplets from the vapor stream, preventing them from leaving the column. | ▪ Wire Mesh Pads: Made of fine mesh, they provide a large surface area to trap droplets. ▪ Vane-type Demisters: Use angled vanes to direct vapor flow and separate droplets by inertia. | Improved product purity. Prevention of liquid carryover. |
We provide various distillation column internals for petrochemicals and pharmaceuticals, including wedge wire scallops, support grids, and reactor center pipes.
